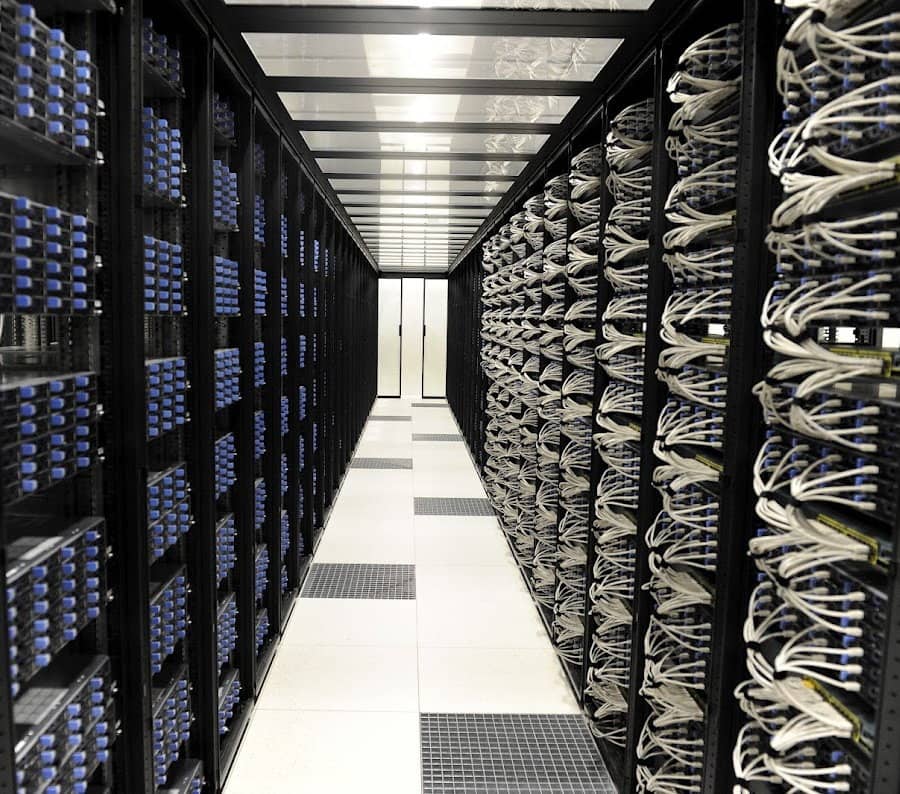

Two years after I had joined the lab, the manufacturing orders for the second generation compute were sent. A few weeks later, they were being racked in the datacenter rooms and shortly after they were released for customer use.

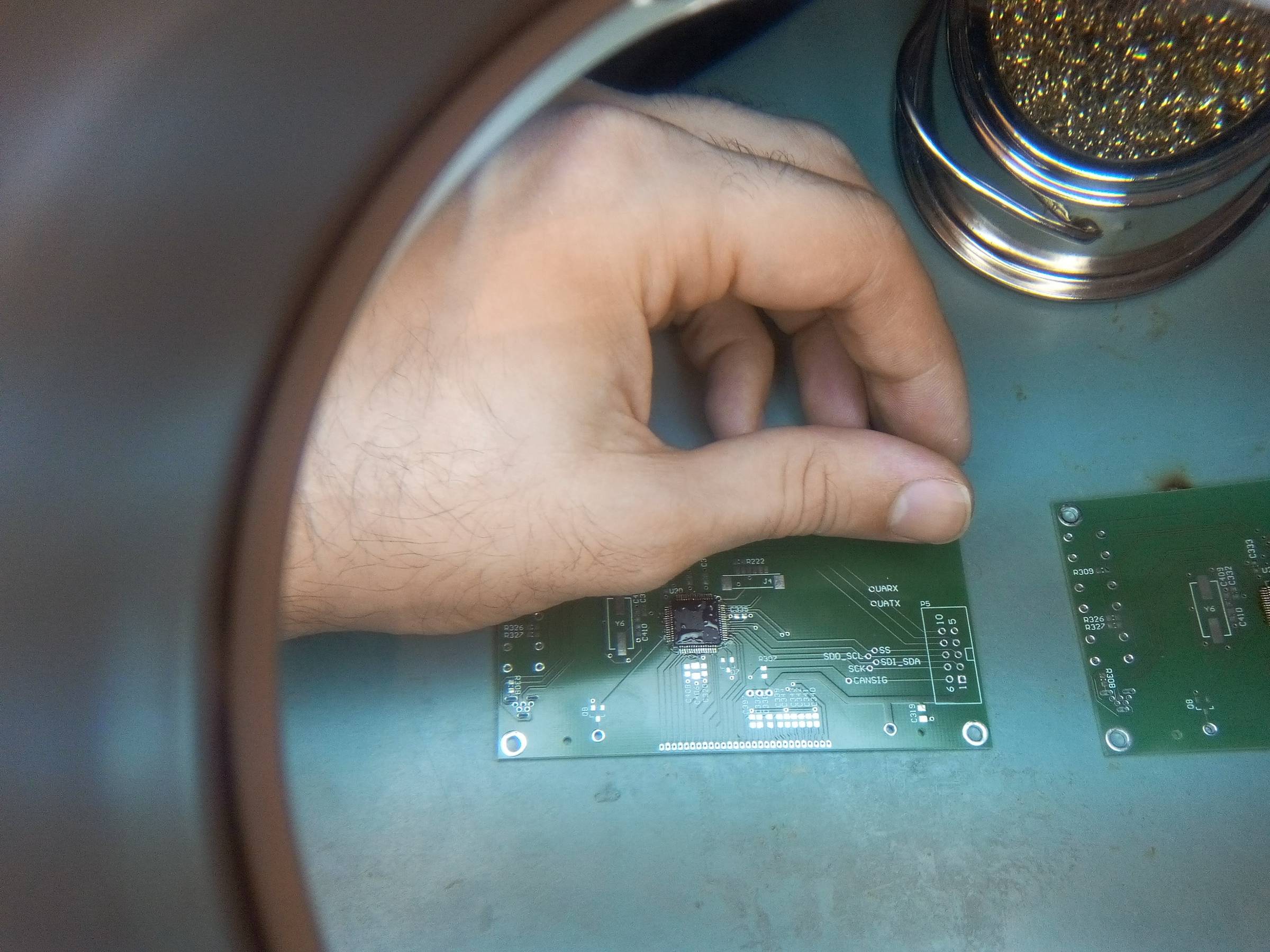

Finally, all the hours we had put in, all the hair we had lost, was worth it as the hardware hit production. I intimately knew a lot of the components. I had traced signals on the boards. I had handled the boards and the metal chassis multiple times. Plugging or seating the components to do some tests.

I remember doing one safety test on my hardware bench. I had pushed the CPU of the compute board to its maximum and was monitoring the temperature, power consumptions and other parameters. Once it was stable, I took a soldering heat gun and blew 500C air into the CPU heatsink. This test was to check that, as the temperature rose, the chip and operating system would start to reduce the frequency and power usage. We wanted to check that after a certain threshold it would shut off as a safety mechanism. The chip went from 35 celsius, to 60C, started to throttle, 80C and abruptly shut down at 98C. Then, I had to make sure it would turn back on and work correctly. I adjusted some of the settings and repeated the test. We made those tests to ensure that the components would not melt down and be rendered into useless glass.

Other tests included sending multiple gigabytes of data per second between the compute boards and checking dropped packets counters or checking the power consumption curves at power up. Boy did we learn many things. Because the C2 used a standard 220V power supply, unlike the C1, it could be sent to a datacenter which the company did not own. For that, the hardware had to be tested for electromagnetic noise in a special room at a third party. You could really feel the gap between theoretical knowledge and experience knowledge. Both were absolutely necessary.

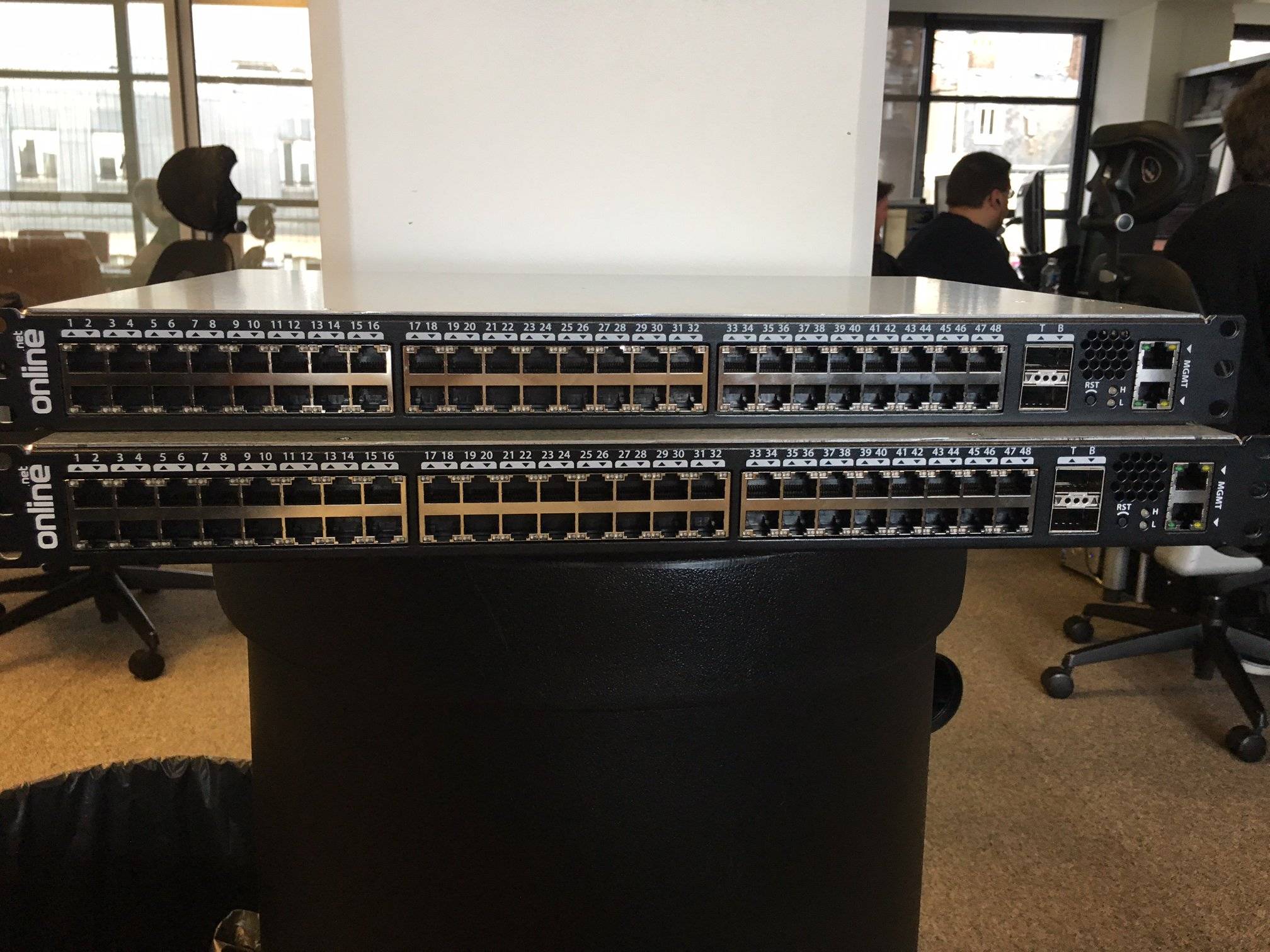

By the time the C2 was going live, the first generation network was also being installed in the data centers. What was the lab working on? It was working on the C3. Preparing the second generation network and finalizing the design for a storage hardware. That last hardware would have a tremendous impact on my career and change its direction but I could not know that yet.

We had three hardware from the lab that were live in production in our data centers, without counting all the SCADA equipment. The team had grown from five, when I had joined, to six. The last join was to give a hand on the x86 BIOS because it was such a headache. Six people working to make hardware that had a lasting business impact. I don't know how long they had worked on the C1 before I had joined in 2013, but at this point in time, in 2016, the lab was starting to give a good return on the investment.

But there was this nagging feeling. Somehow it felt that no one believed us. No one believed a team of six people could do all these things. We were about to have interesting discussions.
